The Rayswitch RP Series 20000mAh Fast Charging Power Bank is a super high capacity power bank for charging up to 3 devices with ease. It features a classic black design with an intelligent large LED display. The fast-charging power bank is equipped with a self-developed quick-charge chip, provided by TSMC, Core Apple Supplier. Charging devices such as a Samsung Galaxy S8, with a Rayswitch Power bank, can be 3 times faster than with a normal power bank. The Rayswitch RP Series is compatible with various mainstream fast charging protocols such as QC3.0, iOS PD20, Samsung AFC, MTK PE and Huawei FCP and PE1.0. It also supports 22.5W Quick Charging (Huawei SCP protocol).
Features :
- 20000mAh Capacity power bank
- Two-way fast charge

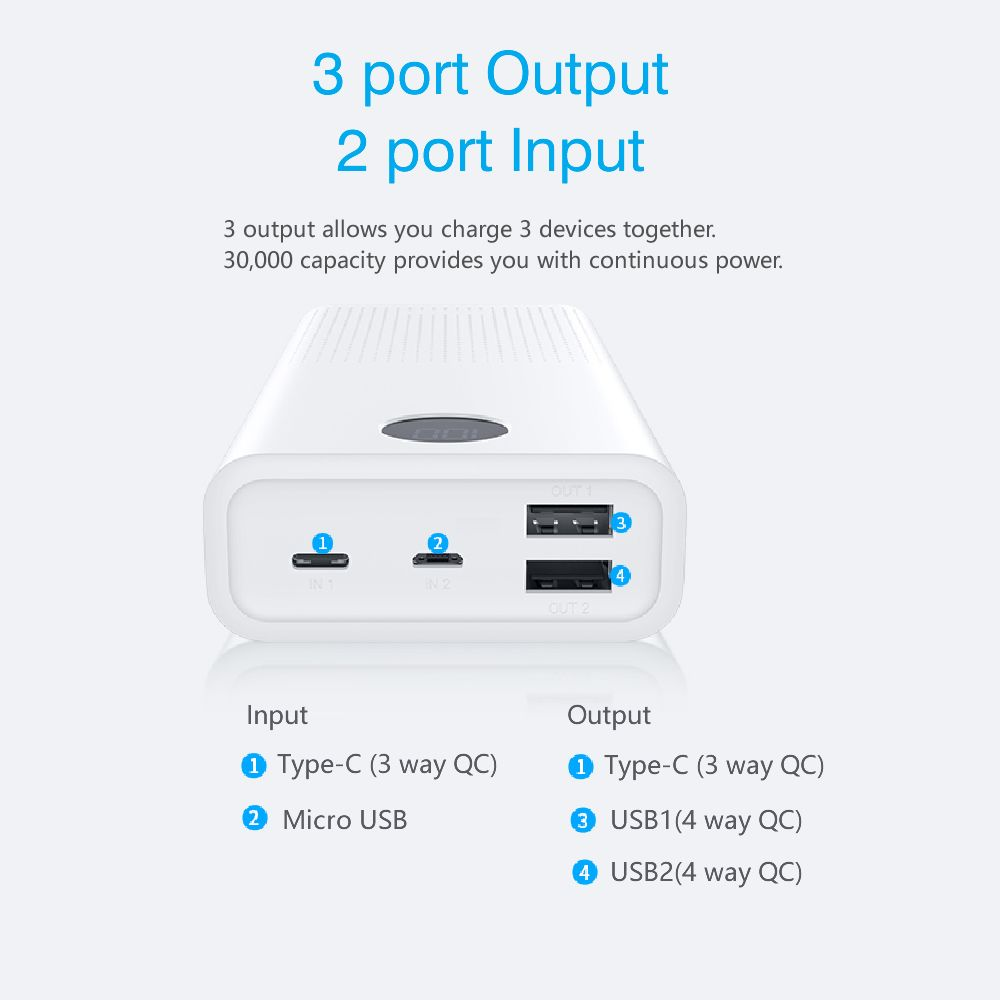

- Dual Input Ports (Micro USB + Type-C)
- Fast Charge Input (PD/QC2.0/QC3.0/FCP/AFC/PE) 18W
- Fast Charge Output (USB-A1/A2) 22.5W | Type-C PD 20W / QC 2.0 / QC 3.0 / 20W
- 20W and 22.5W Fast charge technology
- High-Quality Battery Cells
- Large Digital LED Display
- Approved by NRCS and carries an LOA
- Tested and Passed IEC60950-1 Lab Standards
- Certifications: NRCS LOA, CE, ROHS, FCC, PSE
- Safety Protocols:
Overcharge Protection
Overcurrent Protection
Overload Protection
Over-discharge Protection
Overvoltage Protection
Battery Over-discharge Protection
Overpower Protection
Anti-reverse Protection
Short Circuit Protection
Battery Overcurrent Protection
Specifications :
- Capacity: 20000mAh (74Wh)
Input:
5V-2A or 9V-2A (Micro USB)
5V-3A or 9V-2A (Type-C)
Output:
Type-C: 5V-3A or 9V-2.22A or 12V-1.67A
USB1: 4.5V-5A or 5V-4.5A or 9V-2A or 12V-1.5A or 10V-2.25A
USB2: 4.5V-5A or 5V-4.5A or 9V-2A or 12V-1.5A or 10V-2.25A
Three Output Ports (Type-C+ 2 x USB-A) Share 5V 3A
DC Output via Rayswitch 12V Boost line (12V Max 1.5A with 1 device)
xxNote: You can puchase an extra Rayswitch 12V Boost line with smart adapter set separately, Via the Rayswitch 12V Boost line, Rayswitch RP120 outputs 12V max 1.5A to support Wi-Fi Router | 5G Router | Fiber ONT | CCTV Cameras. 5 hours of backup time is expected with a typical Wi-Fi routerxx
What's in the box
1 x Rayswitch RP 20000mah Fast Charging Power Bank
1 x USB Cable
1 x User Manual
